LM-1 OTN

LM-1 OTN 1

Technology

A unique carrier grade and fully protected platform. A platform to move 10/100/200G in the access/metro network portion, with unlimited flexibility and capability. A platform to transport different kind of traffics over the same network with the best performances in terms of throughput and latency. Native SDN allows a flexible and fast provisioning to cope with unpredictable traffic matrices, driven by modern SDN orchestrator platforms. Fully redundant carrier grade system, with hardware protection (everything from power to switch is protected), client protection and network protection insures the best reliability.

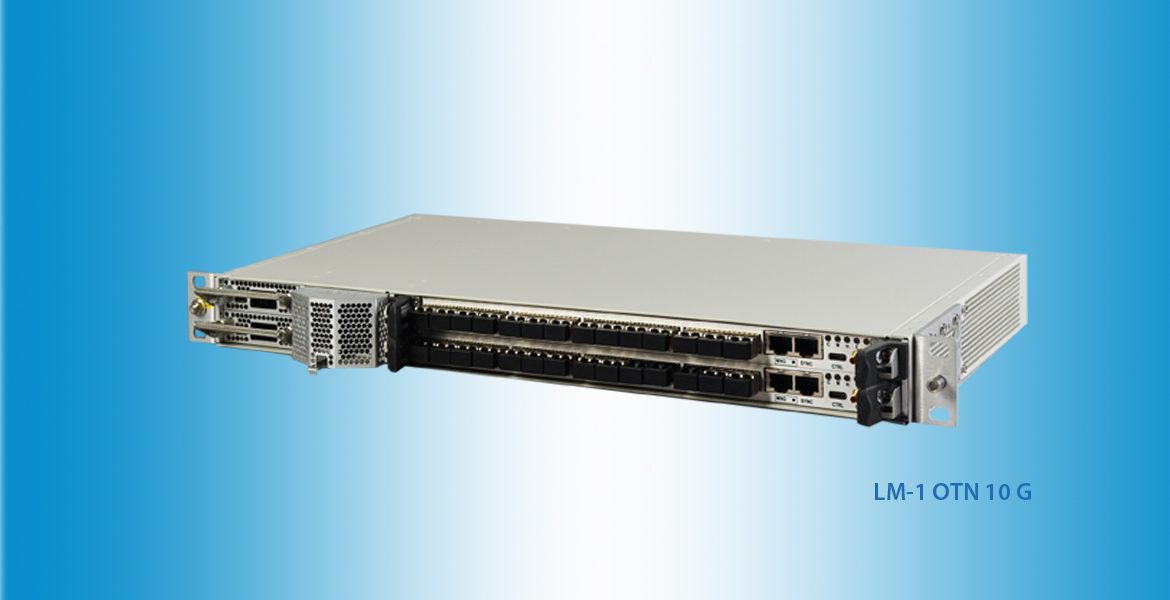

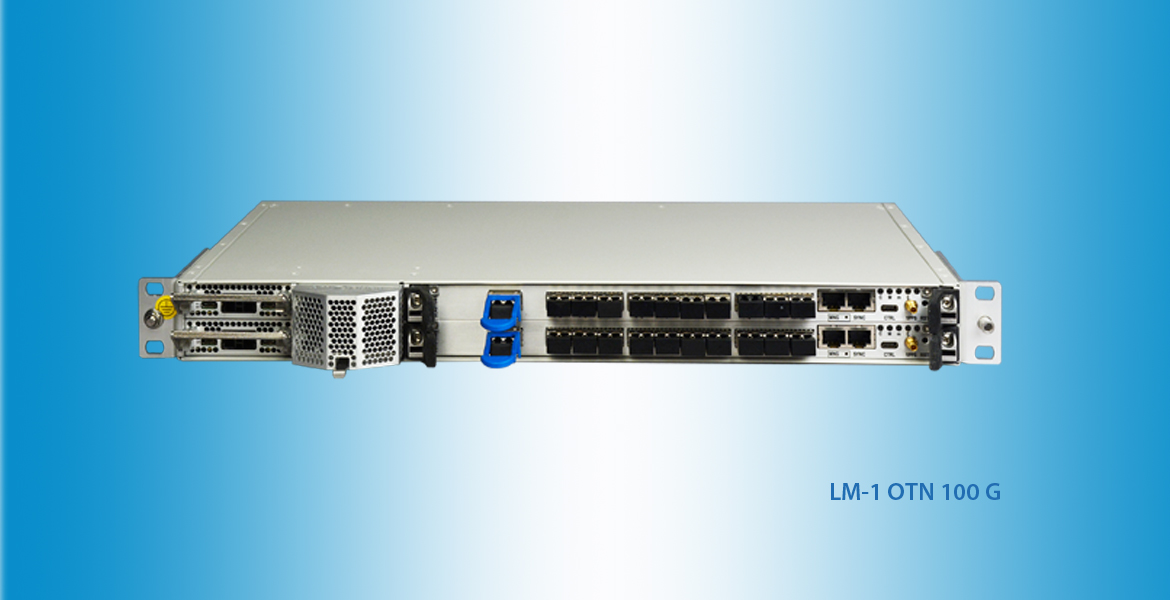

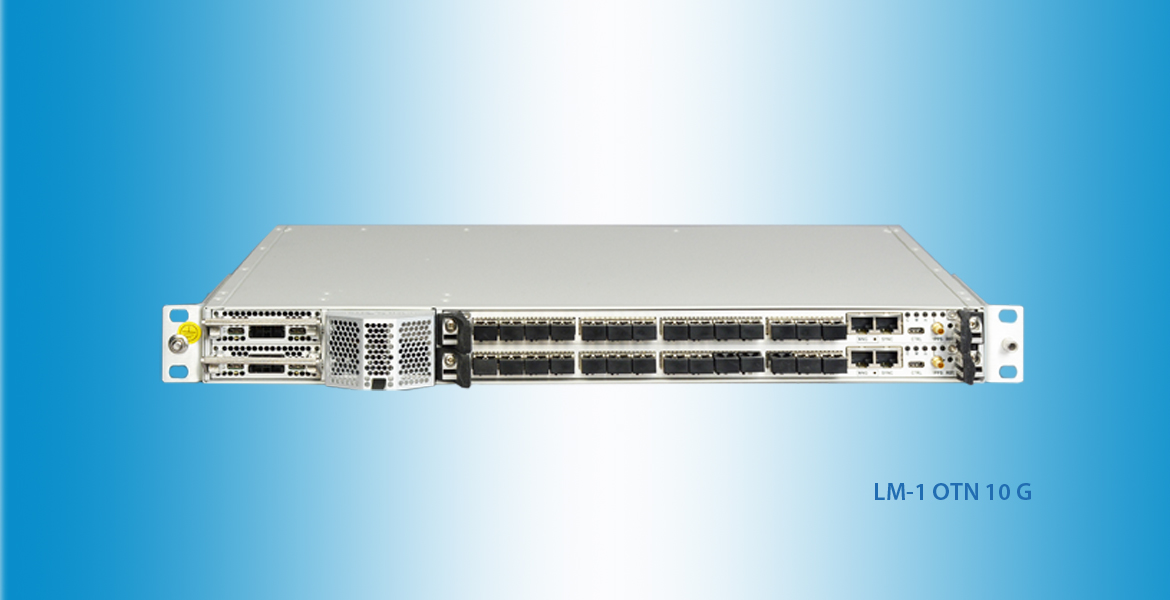

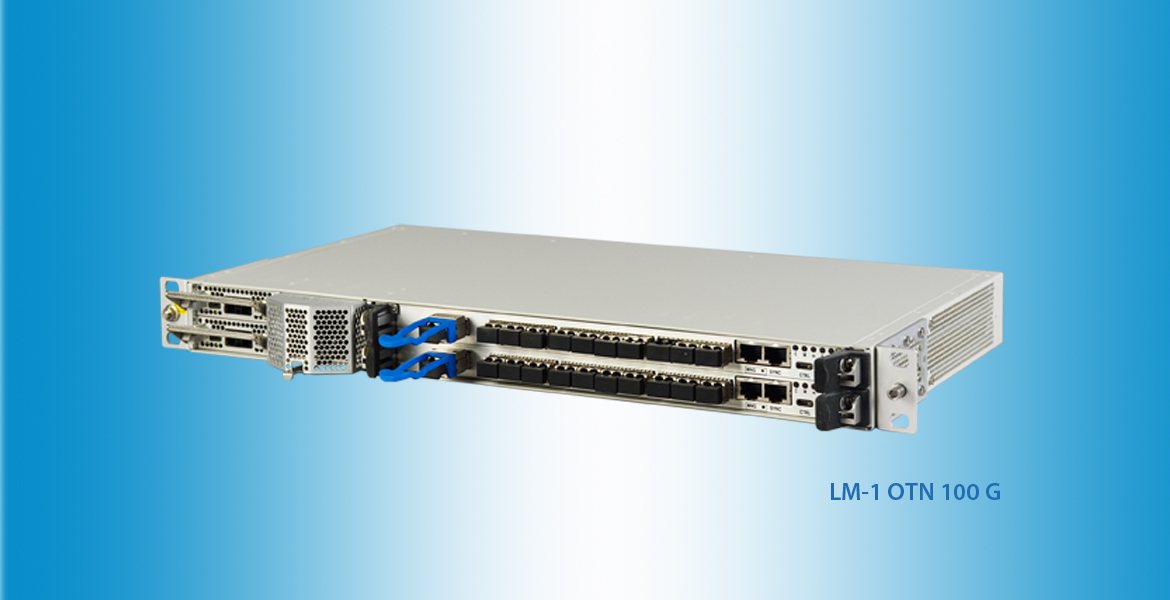

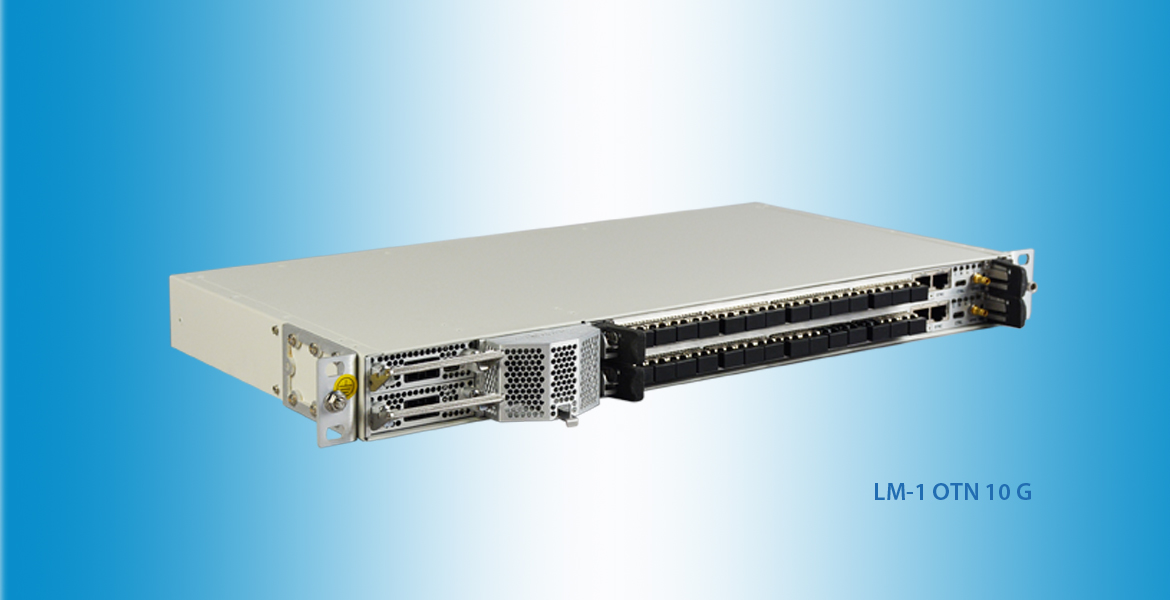

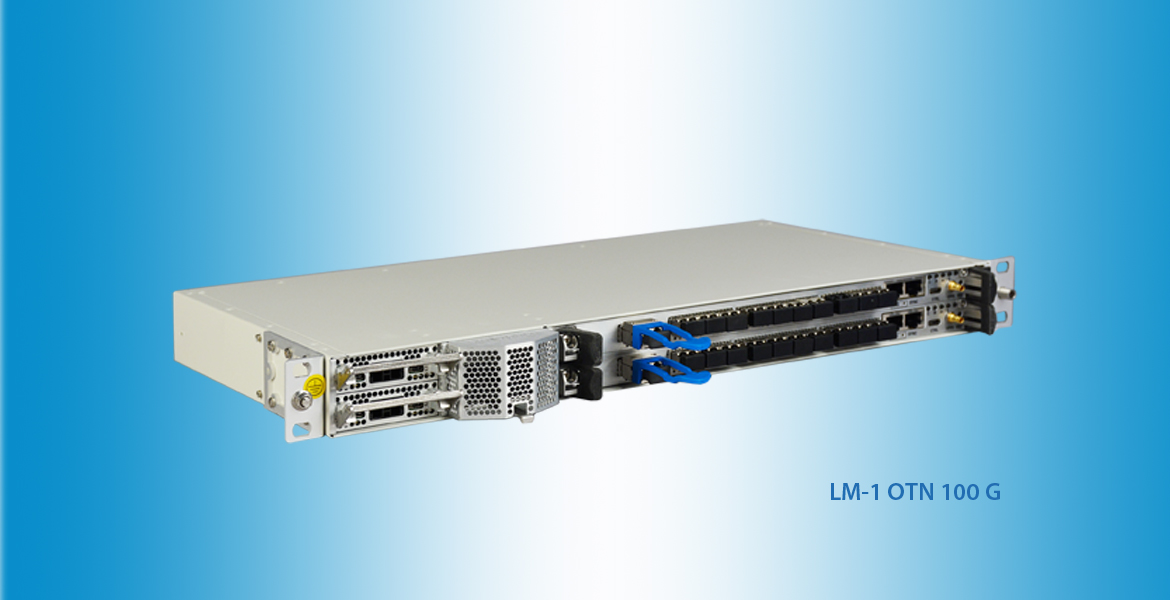

The LM-1 OTN 10G and LM-1 OTN 100G offer full OTN fabric and integrated L2 aggregation (over dark fiber or DWDM infrastructures)functionalities in a single rack unit (1RU).

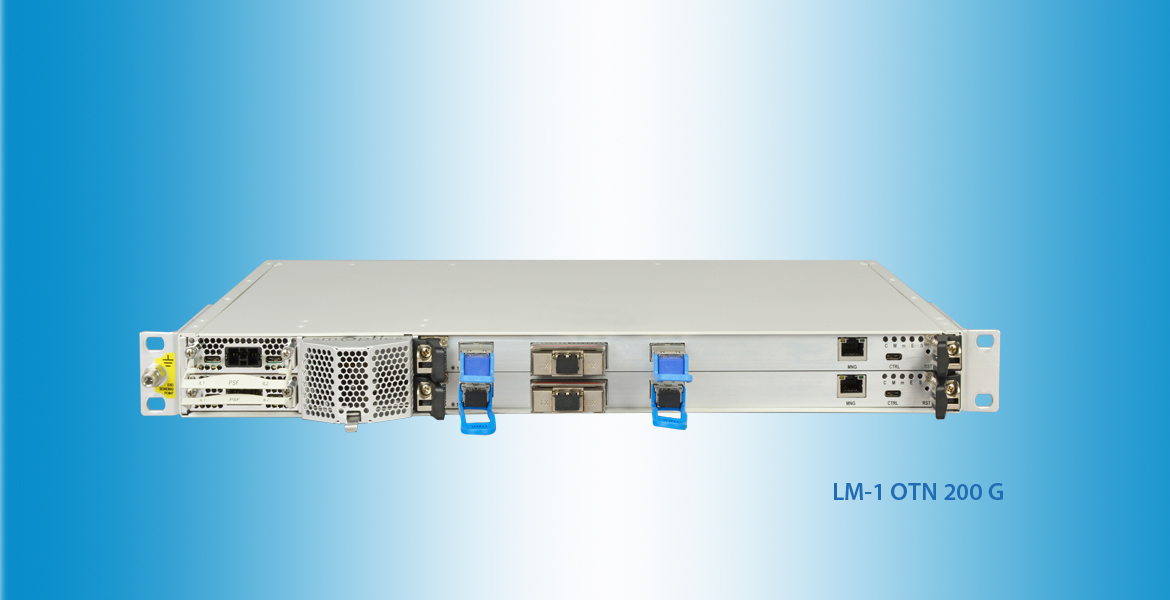

The LM-1 OTN 200G is a disaggregated transponder/muxponder offering 100G and 200G coherent line interfaces.

Applications

Platform Variants

– Network ports: 10G OTU2 B&W or C/DWDM (SFP+ based)
– Client ports: STM-1/4/16/64, 1GE, 10GE, OTU1/2, FC, etc. (SFP/SFP+)
– Switching capacity: ODU0/1/2/Flex granularity
– Power: -48V
– Synch IF: 2MHz/2Mbit, 1PPS/TOD
– Matrix/Ctrl Protection: EPS
– PowerProtection: EPS
– L2 Services: Transparent P2P, EPL,EVPL ETree
– Network connection: ODU0/1/2/Flex unidir/bidir protection
– Network protection: ODU0/1/2/Flex SNC
– Client protection: Multiblade LAG, MSP
– PKT Features: Classification, Policing, queuing (QoS based), VLAN mng, OAM
– Synchronization: SDH sync, SyncE, PTP 1588v2
– Performance Monitoring: OTN, PKT
– SDN Management protocol: RESTCONF/Yang aligned to ONF model

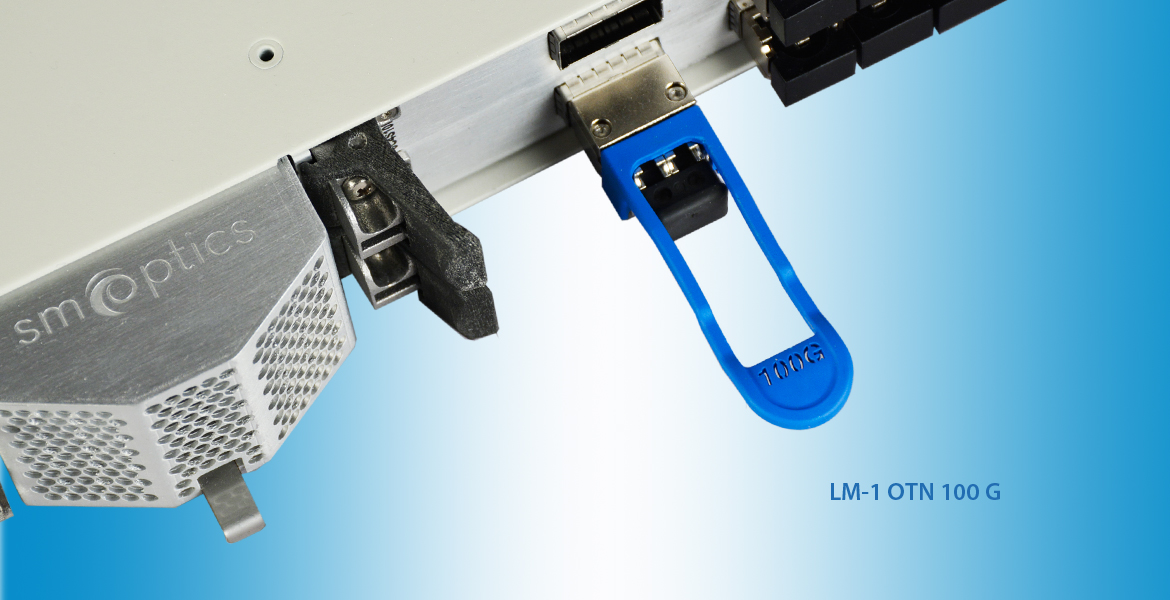

– Network ports: OTU4 B&W (QSFP28 based) or DWDM (Coherent – CFP2 DCO based)
– Client ports: Dual STM-1/4/16/64, 1GE, 10GE, OTU1/2, FC, etc. (SFP/SFP+)
– Switching capacity: ODU0/1/2/Flex granularity
– Power: -48V
– Synch IF: 2MHz/2Mbit, 1PPS/TOD
– Matrix/Ctrl Protection: EPS
– Power Protection: EPS
– Network connection: ODU0/1/2/Flex unidir/bidir/D&C protection
– Network protection: ODU0/1/2/Flex SNC
– Client protection: MSP
– Synchronization: SDH sync, SyncE, 1588v2 (PTP)
– Performance Monitoring: OTN, PKT
– SDN Management protocol: RESTCONF/Yang aligned to ONF model
– Network ports: 100/200Gb coherent (CFP2 based) per blade
– Client ports: Dual 100GE/OTU4 B&W (QSFP28 based) per blade
– Power Protection: EPS
– SDN Management protocol: RESTCONF/Yang aligned to ONF model
