LM-1 micro ROADM
Technology
The LM-1 micro ROADM is an open line system (OLS) highly compact as it offers 2 degree ROADM fully redundant in a single rack unit (1 RU) and highly modular as it offer a large variety modules and plugs to customize each node to reach the best config / price point relationship.
This WSS-free ROADM is based over a grid-less optical multiplexer for maximum scalability supporting any lambda capacity, Multi-degree ROADM (WSS based) is also available. With a stackable design, the LM-1 microROADM can easily and cost effectively scale to satisfy the optical network growth, supporting and lambda capacity. The LM-1 micro ROADM is complemented by the LM-1 WDM platform offering also passive D/CWDM applications.
This WSS-free ROADM is based over a grid-less optical multiplexer for maximum scalability supporting any lambda capacity, Multi-degree ROADM (WSS based) is also available. With a stackable design, the LM-1 microROADM can easily and cost effectively scale to satisfy the optical network growth, supporting and lambda capacity. The LM-1 micro ROADM is complemented by the LM-1 WDM platform offering also passive D/CWDM applications.
Applications
 |
 |
 |
Platform Variants
-

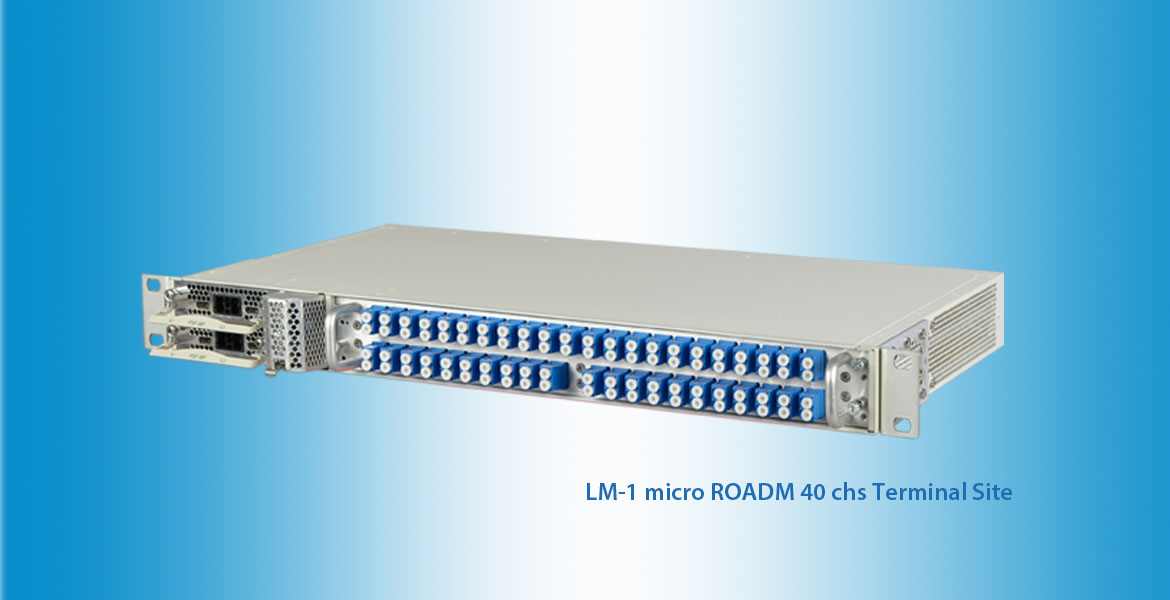

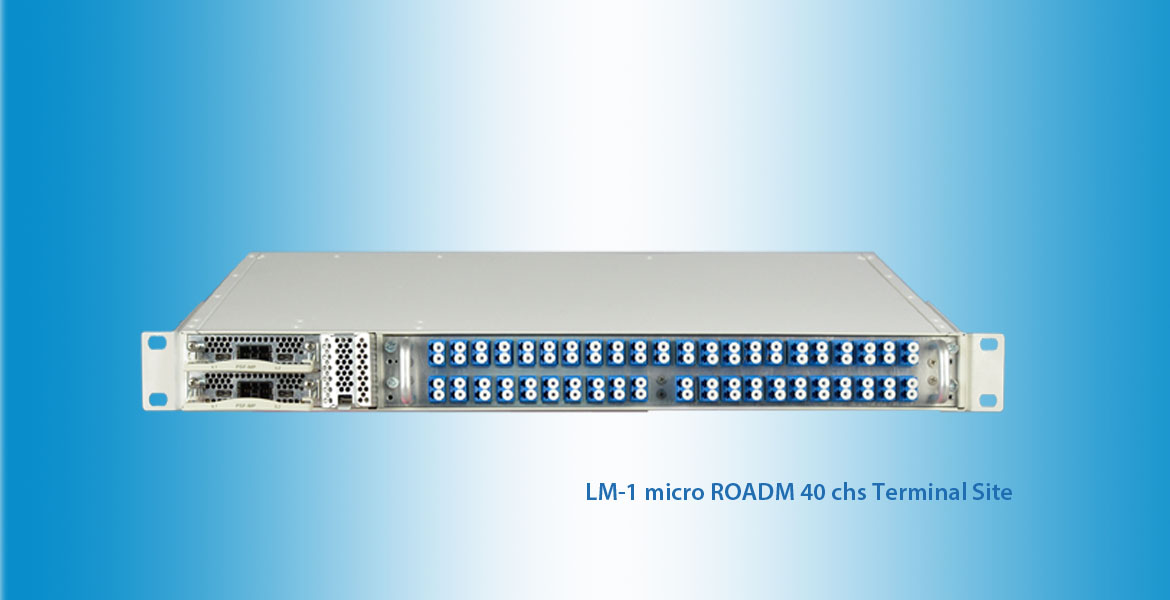

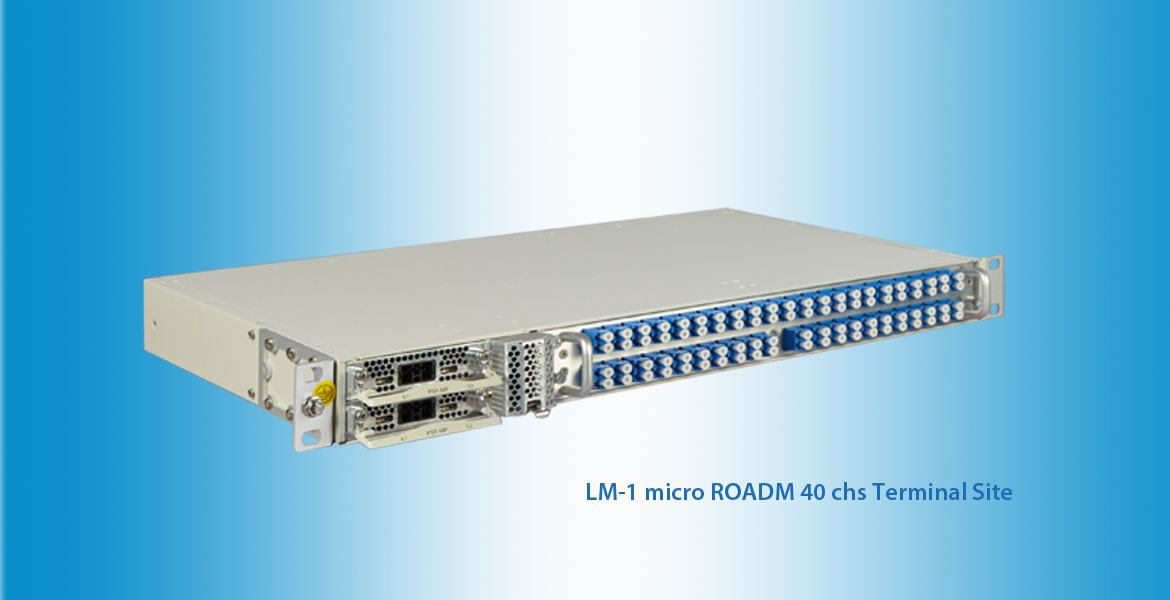

– up to 40/80 channel MUX/DEMUX

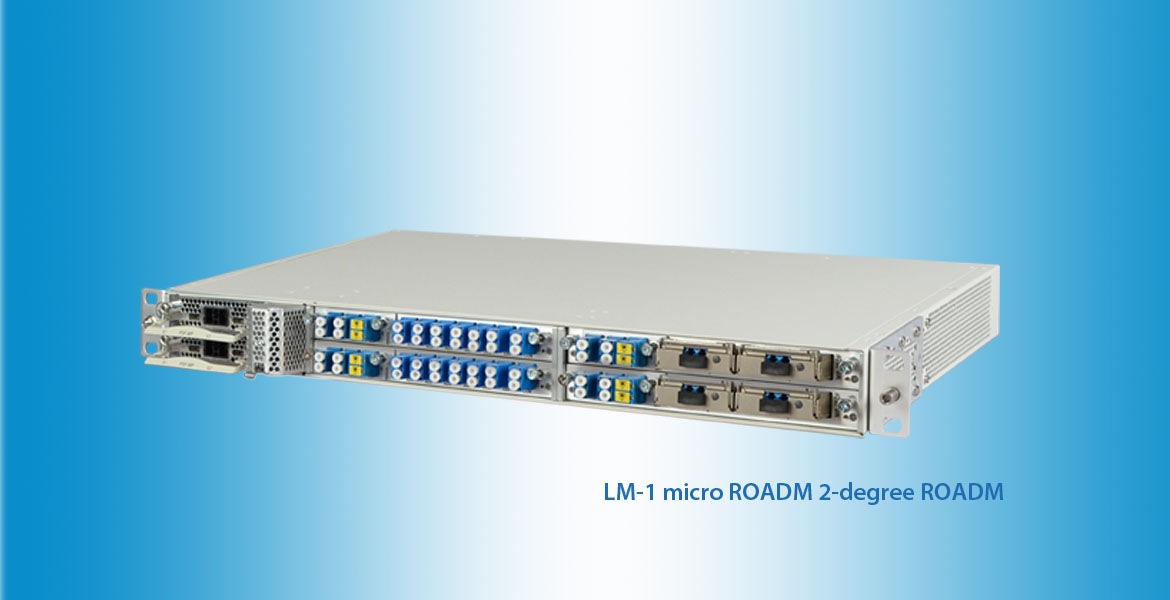

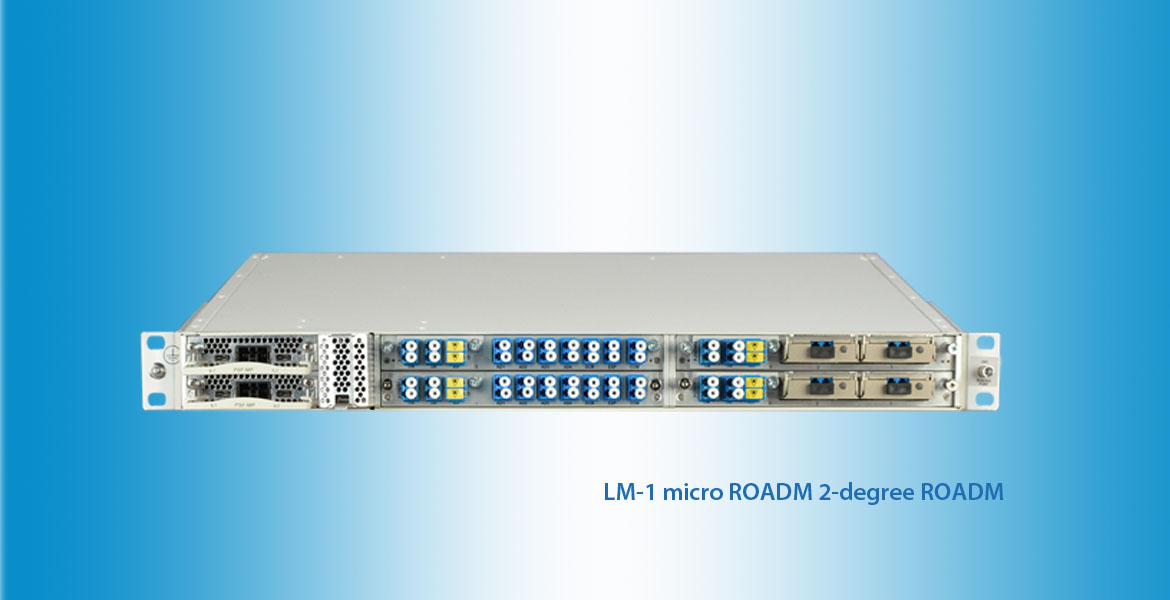

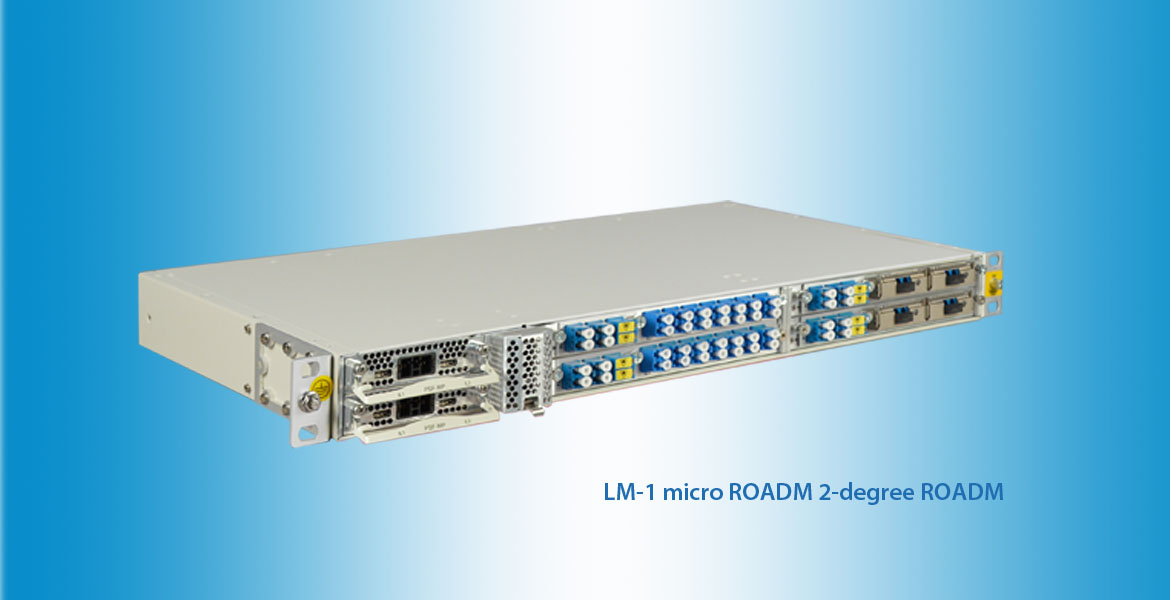

– 2-degree and Multi-degree ROADMs
– Multiple options of EDFA Amplifiers
– Redundant Power and Control

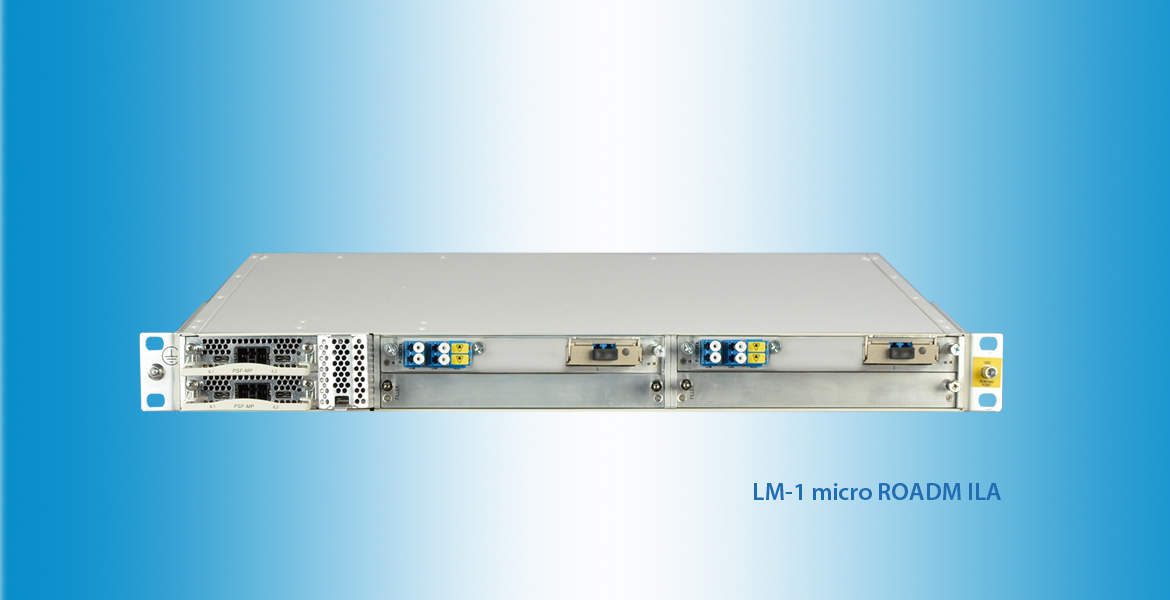

– ILA configuration
– Pluggable OSC
– Flexgrid ready
– Network topologies: Ring, Linear and Meshed
– Automatic power adjustment
– Planning Tool
– APR (Automatic Power Reduction)
– Single NE with LM-1 OTN
– SDN Management protocol: RESTCONF/Yang aligned to ONF model
